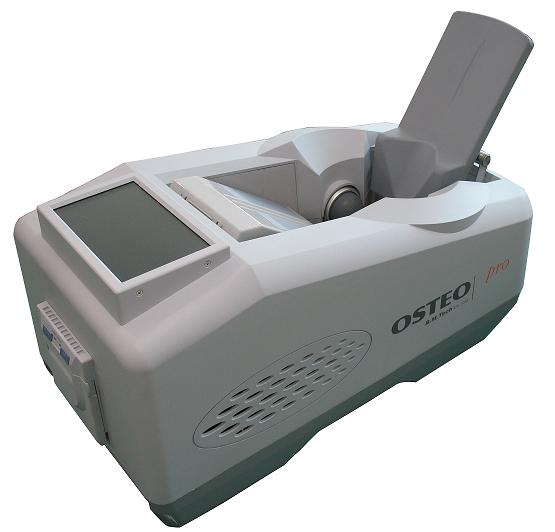

Osteo pro Series(Ultrasound Bone Densitometer) (BM Tech)
Home
>
>
>
>
Osteo pro Series(Ultrasound Bone Densitometer) (BM Tech)

CONTACT US
Description

Osteo pro-Series is an Ultrasound method of diagnosis to the body compared to X-ray type and can perceive other bone data.
Measuring Method: Ultrasound Transmission (Harmless Body Contacting Measuring)
Measuring Site: Heel Bone (Calcaneus)
Measuring Parameter: T-score, Z-score (WHO Standard Reflected)
Accuracy (Reproducibility): + 1.5 %
Weight: 17 kg (Net 13 kg)
Dimension (WxLxH) : 300x300x600 (Packing 430x430x710)
Measuring Time: 20 sec
Age: 20 ~ 100

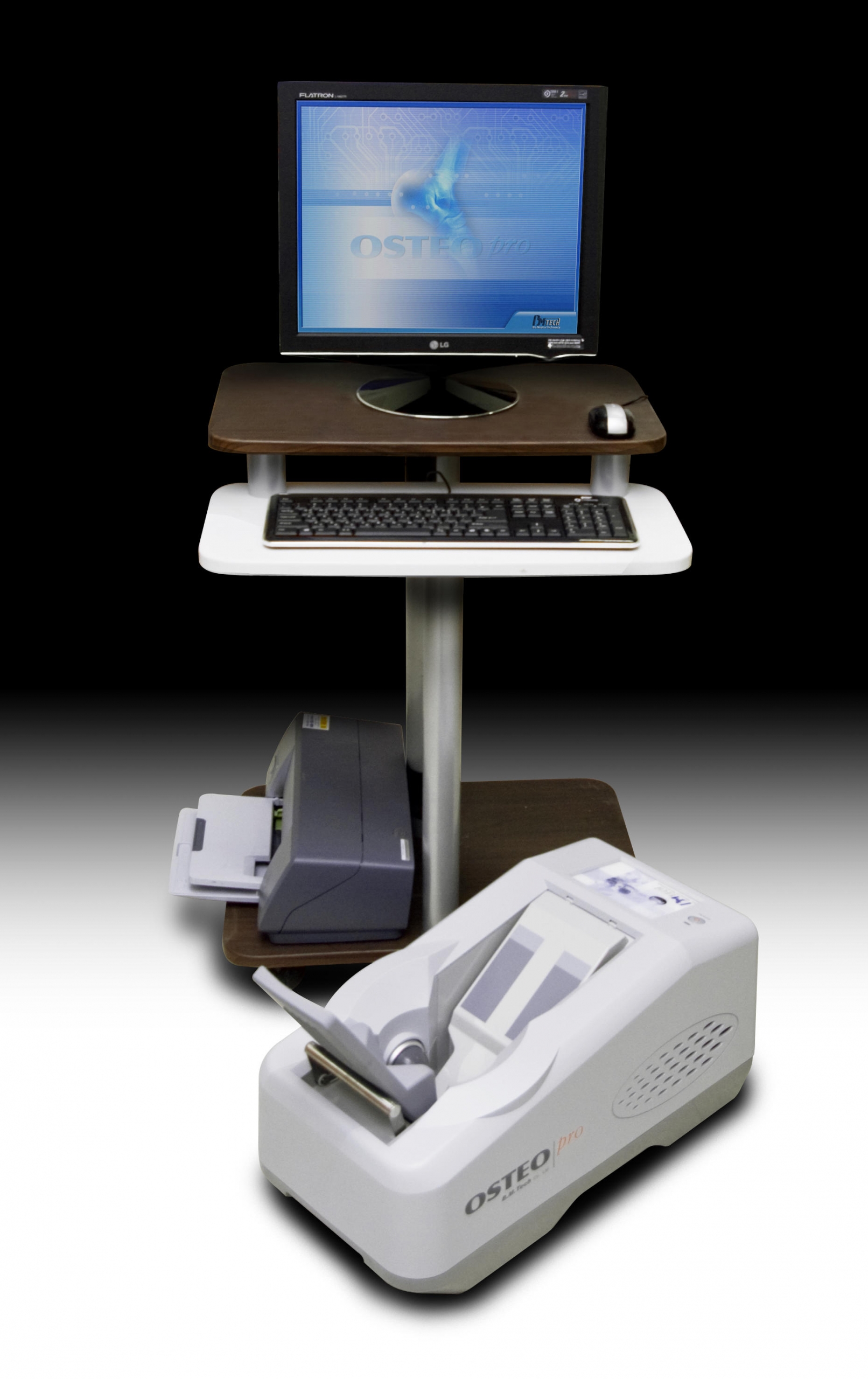

Display: 7” Touch screen (Osteopro Easy) or External LCD Screen (Osteo Pro Smart, Osteo Pro Dual and Osteo Pro Master)
Printer: Installed (Osteopro Easy) or External (Osteo Pro Smart, Osteo Pro Dual and Osteo Pro Master)
Measured Data Saving: Saved in HardDisk (Max: 200,000)
OS: Window XP
Electronic condition: AC 220V + 10% (50~60Hz), 120W
Patient Report: Thermal Printout or Color Printout

Harmless ultrasonic waves.
T-score Precision is less than 0.1 percent.
Using the WHO’s diagnostic standard parameter, it provides reliable diagnostic results.
Using oil medium-Data variation due to temperature inconsistency has been minimized.
Utilizes Ultrasound transducer-Diagnostic errors caused by the transducer shifting has been reduced.
It provides simple and easy entry of patients’ information and support.
Up to 100,000 patients’ data can be stored automatically.
