SW-201, Pulsed Shortwave (ITO)
Home
>
>
>
>
SW-201, Pulsed Shortwave (ITO)

CONTACT US
Description

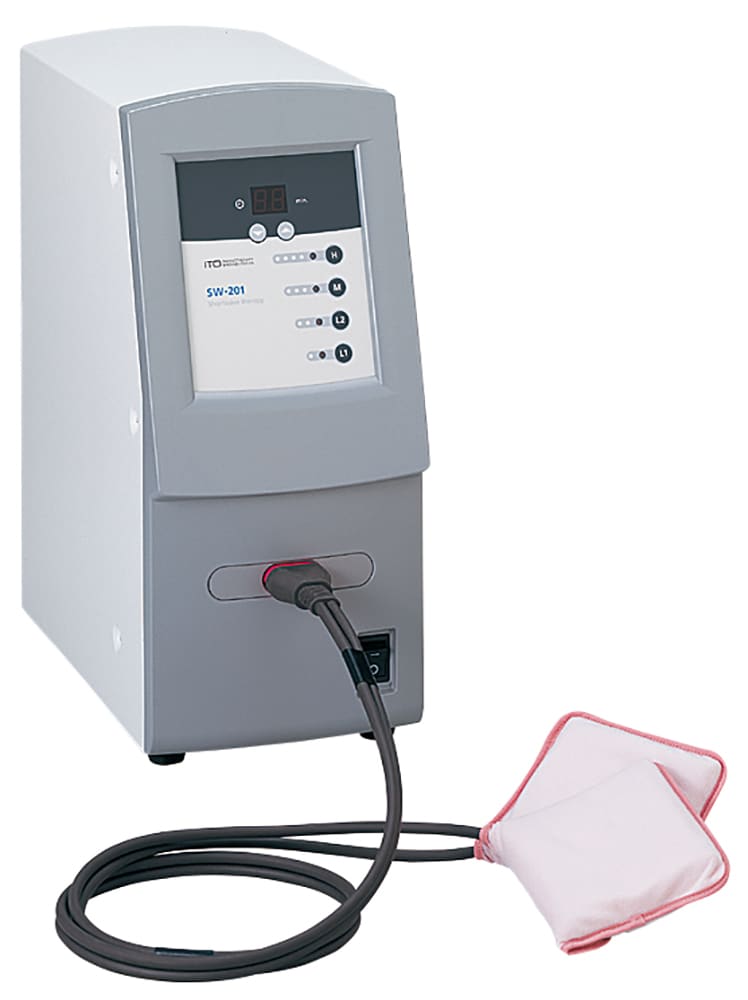

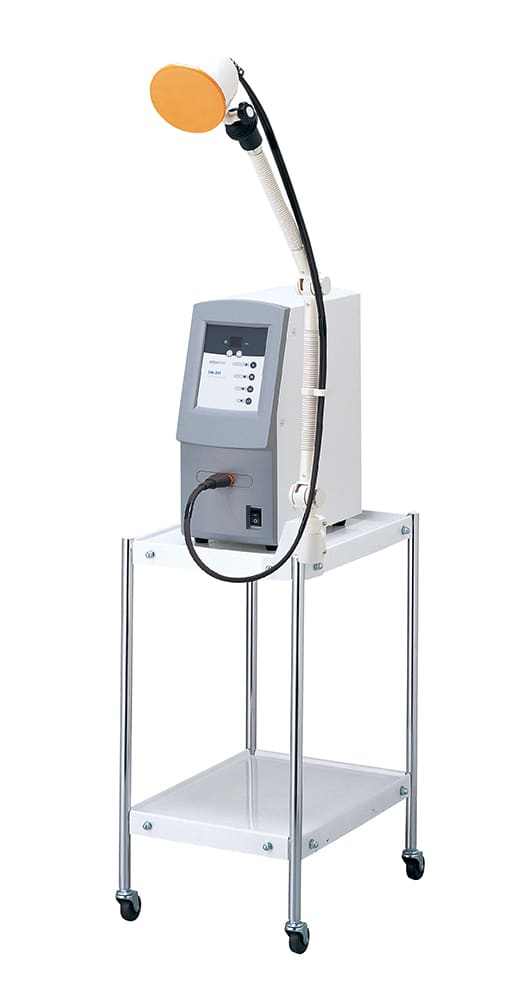

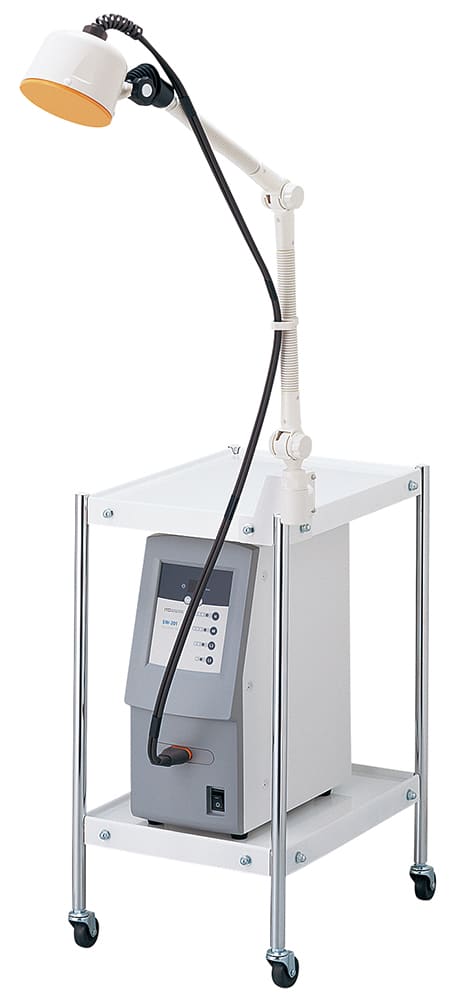

SW-201 is a shortwave therapy unit using electromagnetic waves.
Mode: Pulased mode
Applicator: Capacitive or Inductive applicator or Disc or Plate applicator.
Output power: max.132 W(peak) or 44 W(mean) ± 30%
Pulse duration: 400 µs
Pulse Frequency: 1025-1460 Hz
Timer: 0-30 min

Effectively treats both acute and chronic conditions.
Vertical, space-saving design
Delivers high power despite compact dimensions and lightweight
Wide range of applicator
Solid-state oscillation and Auto-tuning functions
