UF-5000

CONTACT US
Description

Model- UF-5000, Sysmex, Japan

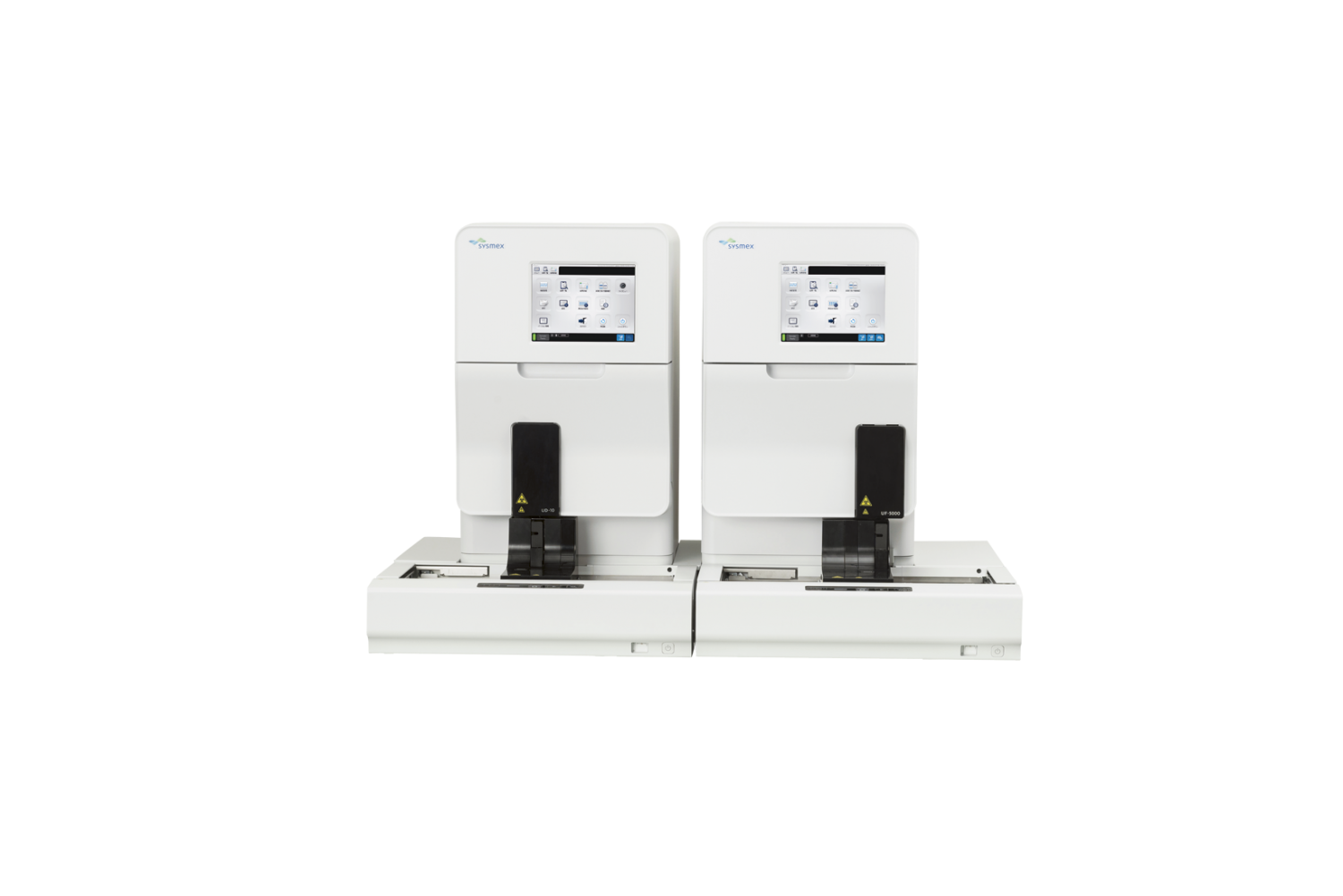

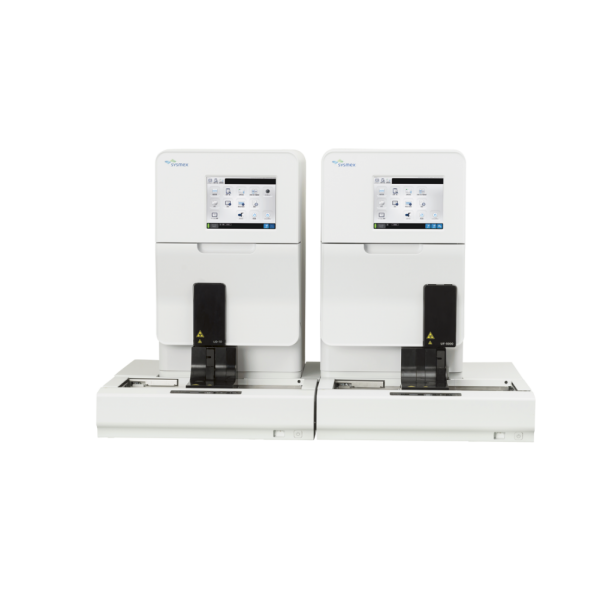

The UF-5000 is a fully automated urine Particle Analyzer. The UF-5000 uses Fluorescence flow cytometry with blue semiconductor laser and hydrodynamic focusing. The flow cytometry counts and classifies cells by analyzing forward scatter light (FSC), side scatter light (SSC), side fluorescent light (SFL) and depolarized side scattered light (DSS).

The UF-5000 has 19 parameters Including:

  • Non Lysed RBC,
  • WBC,
  • WBC Clumps
  • EC
  • Squa EC
  • Non SEC
  • Tran EC
  • RTEC
  • Cast
  • HyCast
  • PathCast
  • Bact
  • X’TAL
  • YLC
  • Sperm
  • MUCUS
  • Lysed RBC
  • SRC
  • Atyp.C
  • Debris
  • Cond
  • Osmo
  • SF TC
  • CW TC
  • CB TC
  • SF Others
  • CW Others)

9 Body fluid parameters:

  • RBC
  • WBC
  • MN#
  • MN %
  • PMN#
  • PMN %
  • EC
  • TNC
  • Bact

And, 11 research parameters

The UF-500 runs up to 105 urine and body fluid sample per hour and can store up to 10,000 sample test results.
