Water Treatment division

Amd launched its water and waste water treatment division in 1998 and has successfully completed projects all over Myanmar, from Yangon to regional islands, we have 21 years worth of experience in many different locations and conditions . This experience enables us to consider every aspect of a project. The history of Amd is somewhat parallel with the development of Myanmar's hotel and industrial sectors. Scroll down to read all about our diverse experience.

Kyun Pila (Mergui Archipelago)

Myanmar has a 1930 km long coastline featuring numerous islands. In recent years there has been interest in developing these islands for Tourism. Many of these are more than fifty kilometers off the Myanmar coastline. One of the larger scale projects …

More information

Bo Net Kyaw Island (Pulo Balu)

Having carried out an extensive water and wastewater installation on Kyun Pila we were asked to quote and eventually installed a system on Bo Net Kyaw, a 700 Acres Island, which is located 40 miles away from Kaw Thaung. The owners were eager to fast track …

More information

Coca Cola Hmawbi

When Coca Cola returned to Myanmar after a long absence, they took over a site used to manufacture local soft drink brands. Due to the requirement for expansion they ordered an extremely large prefabricated steel zincalume coated tank from Amd …

More information

Domestic waste water Coca Cola

The need to properly treat wastewater from a site employing four hundred people was recognized early in the design process. Amd retrofitted a large fiberglass packaged plant featuring several pump stations. The job was complicated by the existence of an old Septic …

More information

Malikha Lodge ( Putao )

This remote northern town was once known as Fort Hertz. Even in 2004 it was an isolated and remote town with trucks from Myitkyina to Putao transiting for up to three weeks! This was one of the reasons we decided to install Australian made steel/zincalume prefabricated …

More information

Amd water treatment – The early years 1997-2003

Although originally established as a supplier of Medical Diagnostic products eg. Hepatitis and HIV test kits, we were requested to undertake water treatment engineering. This resulted from a meeting circa November 1997 between Fenton Holland (GM) Amd …

More information
more projects

Water Treatment Products and Services

Amd’s Water Treatment offers a wide range of products and services. Check out our portfolio below and let us know how we can be of service to you.

More information

Hi! We are part of the 150+ person Amd team. If you have any questions please do not hesitate contact us!

Call Us
+95(0)1 8551095
CALL US

Start typing and press Enter to search

View more
Shopping Cart

No products in the cart.

Return To Shop

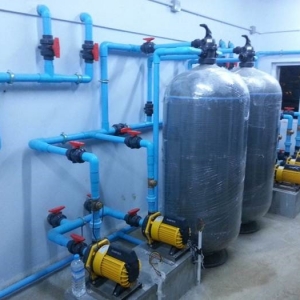

Water treatment Plant

Water treatment Plant

Waste Water treatment plant

Waste Water treatment plant

View side

View side

unloading construction material from barge

unloading construction material from barge

Plinth for tank

Plinth for tank

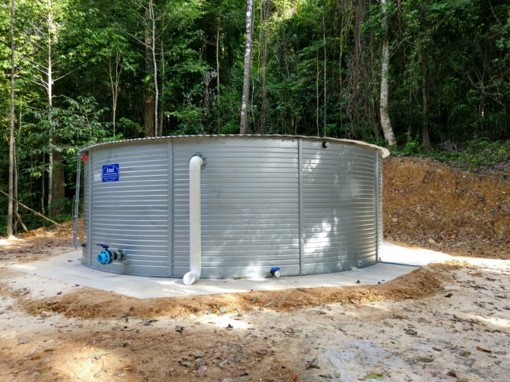

Pioneer water storage tank

Pioneer water storage tank

Landing on island (Kyun Pilla)

Landing on island (Kyun Pilla)

Landing on island (Floating Platform@third trip)

Landing on island (Floating Platform@third trip)

jetty at aung ba viltage

jetty at aung ba viltage

Going to Camp at another beach from Landing side (@second trip)

Going to Camp at another beach from Landing side (@second trip)

Going to Camp at another beach from Landing side (@first trip)

Going to Camp at another beach from Landing side (@first trip)

Accessories of tank before installation

Accessories of tank before installation

Slide Content

Kyun Pila (Mergui Archipelago)

Myanmar has a 1930 km long coastline featuring numerous islands. In recent years there has been interest in developing these islands for tourism. Many of these are more than fifty kilometers off the Myanmar coastline. One of the larger scale projects that has been undertaken is Kyun Pila, accessible by boat from Kawthaung. This island is relatively large (6000 acres). Amd was requested to propose water treatment and waste water treatment. From the outset logistics was a major issue. The island would require water for guests and staff numbering over 150 people. Waste water would be treated before discharge. As the island had no Jetty all equipment was barged from Yangon or Kawthaung directly. Amd supplied very large tanks (11,000 – 54,000 Gal) tanks in a prefabricated easy to ship format. Five tanks were erected mostly within six days of commencement at site. These were used as both raw untreated water and treated water storage. Amd installed a total of 8 tanks and a series of filters and pumps in order to ensure that the water was potable. Distribution was via modern pressure pumps. Wastewater was treated via an Activated sludge system and thereafter passed through a post effluent treatment system finally being stored in another tank for garden usage. The resort on Kyun Pila is operated by Memories group with guest transport by boats from Kawthaung.

In 2016, SPA took over this project. They immediately requested Mr. Steve Nelson (known for his successful green field development of Pun Hlaing Housing & Golf Estate) to assume the Project Director role.

Mr. Nelson spent a considerable period on the island exploring development concepts and eventually produced a master plan. A part of this involved providing a strong infrastructure to support the guests. Water storage and treatment was listed as a prime consideration.

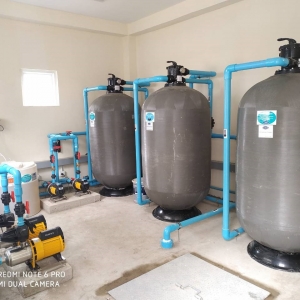

Water Treatment Plant

Water Treatment Plant

Waste water treatment barge

Waste water treatment barge

Uploading from barge

Uploading from barge

SBS water stronge tank

SBS water stronge tank

Ring Beam for Tank

Ring Beam for Tank

map photos

map photos

Bo Net Kyaw Island (Pulo Balu)

Having carried out an extensive water and wastewater installation on Kyun Pila we were asked to quote and eventually installed a system on Bo Net Kyaw, a 700 Acres Island, which is located 40 miles away from Kaw Thaung. The owners were eager to fast track development and understood that the prefabricated large steel tanks would achieve this. Zincalume coated steel tanks were installed for both raw and treated water as they are highly resistant to rust. After the installation of the tanks we installed a waste water treatment system for phase one of the project which required water treatment for 20 rooms.



Roof Manhole Access Hatch Ladder installed

Roof Manhole Access Hatch Ladder installed

Ring Beam

Ring Beam

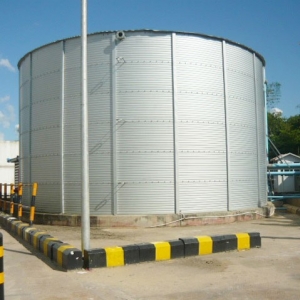

Pioneer Water Storage Tank 640m3

Pioneer Water Storage Tank 640m3

Pioneer Water Storage Tank 92m3(Colcorband@Tank)

Pioneer Water Storage Tank 92m3(Colcorband@Tank)

Liners Truss installed

Liners Truss installed

Liners installation

Liners installation

Antivortex fittings installed

Antivortex fittings installed

Coca Cola Hmawbi

When Coca Cola returned to Myanmar after a long absence, they took over a site used to manufacture local soft drink brands. Due to the requirement for expansion they ordered an extremely large prefabricated steel zincalume coated tank from Amd for raw water storage. Further requirements included the need for seismic rating in the event of Earthquakes or Tremors. Amd added a special Antivortex fitting required to meet firefighting codes. Once on site the 640m3 tank was installed in nineteen days including the erection of the necessary scaffolding, meeting all requirements and ready to use.



Domestic Waste Water Treatment Plant installation.1

Domestic Waste Water Treatment Plant installation.1

Domestic Waste Water Treatment Plant installation.2

Domestic Waste Water Treatment Plant installation.2

Domestic waste water Coca Cola

The need to properly treat wastewater from a site employing four hundred people was recognized early in the design process. Amd retrofitted a large fiberglass packaged plant featuring several pump stations. The job was complicated by the existence of an old Septic system within the site. Amd’s highly skilled engineers, technicians and designers put their minds together to create an effective solution. The result, a complete, high quality, wastewater treatment system. Amd has further recommended that post effluent treatment would expand the options for disposal of the treated effluent.



water treatment plant in 2006

water treatment plant in 2006

pioneer water stronge tank 10000 Gal (in 2011)

pioneer water stronge tank 10000 Gal (in 2011)

pioneer water storage tank 6000 Gal (in 2010)

pioneer water storage tank 6000 Gal (in 2010)



Malikha Lodge ( Putao )

This remote northern town was once known as Fort Hertz. Even in 2004 it was an isolated and remote town with trucks from Myitkyina to Putao transiting for up to three weeks! This was one of the reasons we decided to install Australian made steel/zincalume prefabricated tanks, readily transportable on pallets. The hotel was to be built in Mulashidi approximately 7 km outside Putao. After an initial survey in 2004 we decided to pump water from the Nam Lang River, more than 50m below the hotel site. A plateau was carved out of the mountain side enabling the steel tanks and plant room to be built. The water treatment comprised modern filtration and chlorination and utilized Australian Davey pumps known for their small footprint, longevity and economic electrical consumption. In fact, we went on to install Davey pumps in the hundreds throughout Myanmar. The hotel became The Lisu and later The Malikha Lodge. In 2010, we were asked to expand upon our original design and our team once again deployed to Putao. The Malikha Lodge was built as an ECO & adventure Lodge. River Rafting and mountain hiking were envisaged. Those plans were made in 2004, however the full scope was never realized. Nonetheless a first-class lodge was built and bekons those adventure tourists.

Background

Mulashidi is a remote village divided by the Nam Lang River, a pristine blue water river flowing from the Myanmar Himalayas. A water wheel is installed in an adjacent tributary Creek and apparently is used for rice milling and electricity generation for the village was generated. It appears that it was installed circa 1900 and built in Scotland, still operational until the present.
Total Main Office (since 1998).1

Total Main Office (since 1998).1

Total Main Office (since 1998)

Total Main Office (since 1998)

Pun Hlaing Skid Mount ( since 2001)1

Pun Hlaing Skid Mount ( since 2001)1

Pun Hlaing Skid Mount ( since 2001)

Pun Hlaing Skid Mount ( since 2001)

Premier oil petronas (since 1998)

Premier oil petronas (since 1998)

Premier oil petronas (since 1998).1

Premier oil petronas (since 1998).1

Old Bagan Hotel ( since 2003)

Old Bagan Hotel ( since 2003)

Old Bagan Hotel ( since 2003).2

Old Bagan Hotel ( since 2003).2

Myanmar LSG (sky Chefs)(since 1998)

Myanmar LSG (sky Chefs)(since 1998)

Myanmar Apparel (since 2002)

Myanmar Apparel (since 2002)

First Australian domestic Biofilter PHGE circa 2001

First Australian domestic Biofilter PHGE circa 2001

Amd water treatment – The early years 1997-2003

Although originally established as a supplier of Medical Diagnostic products eg. Hepatitis and HIV test kits, we were requested to undertake water treatment engineering. This resulted from a meeting circa November 1997 between Fenton Holland (GM) Amd and Dr. Richard Jones, medical advisor for Texaco and Premier oil 1996-2000. Premier were offshore constructing the Yetagun gas pipeline from the Yetagun field to the coastline near Daminsek village and onto the Thai Border at Yadana. This seven hundred million dollar investment involved an offshore platform, onshore logistics centers and office and a major pipeline both undersea and onshore. Personnel from the UK were brought in to manage the project. Dr. Jones was concerned that of the twenty rental houses required for these personnel none had access to potable water. Follow up microbiological tests confirmed the need. It was decided to install water treatment systems capable of removing potential pathogens. Initially a pilot scale installation was done at 18 E Inya Road. Installation was completed in January 1998. Thereafter numerous other houses and the Premier office had filtration system installed and later maintained by Amd. The Yetagun project was eventually completed in 2000 and the gas flows to Thailand.
